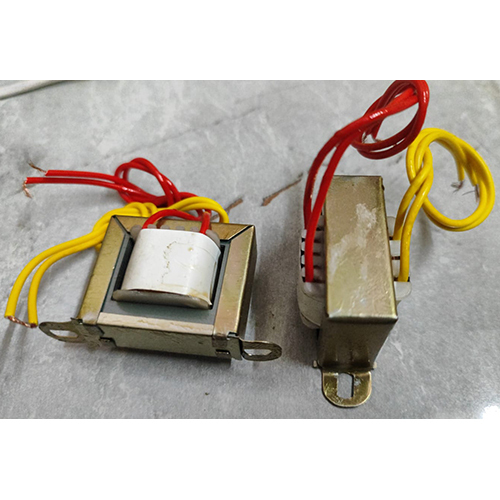

Voltage and Current Transformers

About Voltage and Current Transformers

Description:

A Voltage Transformer is an instrument transformer designed to step down high voltage in a power system to a lower, safer level suitable for measuring instruments and protection devices. It provides an accurate voltage replica of the high-voltage system at a standardized value, typically 110 V or 63.5 V.

Key Features:

• Operates on the same principle as a power transformer.

• Connected in parallel with the high-voltage line.

• Provides isolation between high-voltage circuits and measuring equipment.

• Ensures accuracy and safety for voltmeters, relays, and control systems.
